Cymoon X99 DDR3 Motherboard LGA 2011-3 DDR3 Mainboard Mobo USB3 SATA3 t

Cymoon X99 Motherboard LGA 2011-3 DDR4

Di halaman ini dijual beberapa varian untuk motherboard merk Cymoon yang support dengan soket LGA2011-3 (Xeon 26xx v3 dan Xeon 26xx v4)

Product Specifications (General)
Supported Processors: Xeon E5 26xx v3/v4
CPU socket: LGA 2011-3
Form: M-ATX
Memory slot: 4*DDR4 (four memory channels)
Maximum memory: 4*16GB DDR4
Supported memory types: The memory types support DDR4 desktop and server memory. (ECC REG supported)

Variant-specific specifications

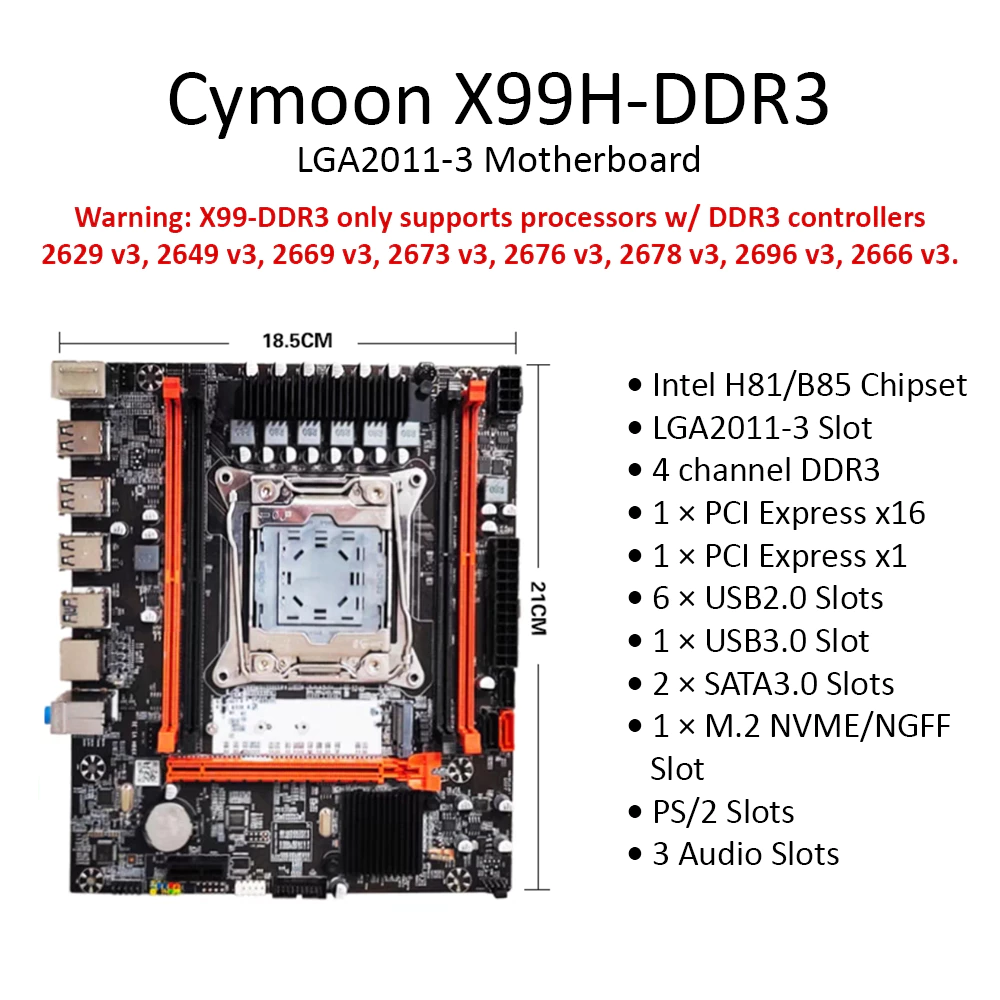

X99H
• Chipset: Intel H81/B85
• Slots:
•• PCIe x16: 1
•• PCIe x1: 1
•• USB2.0: 6
•• USB3.0: 2
•• SATA3.0: 1
•• SATA2.0: 2
•• M.2 NVME/NGFF Slot: 1
•• PS/2 Slots
•• 3 Audio Slots

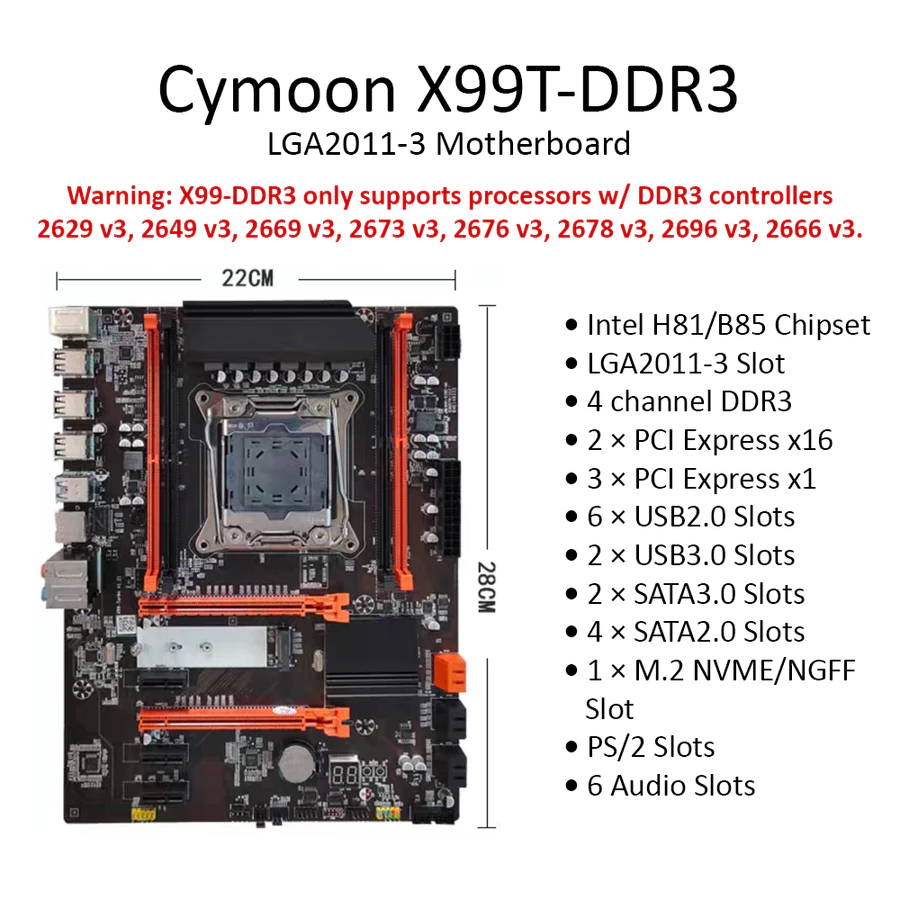

X99T
• Chipset: Intel H81/B85
• Slots:
••
